Açıklama
| System | Operation system | Embedded Linux |
| Online visitor | Support 4 visitors at the same time | |
| Collection | Image sensor | 1/3 inch Progressive Scan CMOS |
| Minimum illumination | 0.5Lux（Color mode）,0.1Lux（B&W Mode） | |

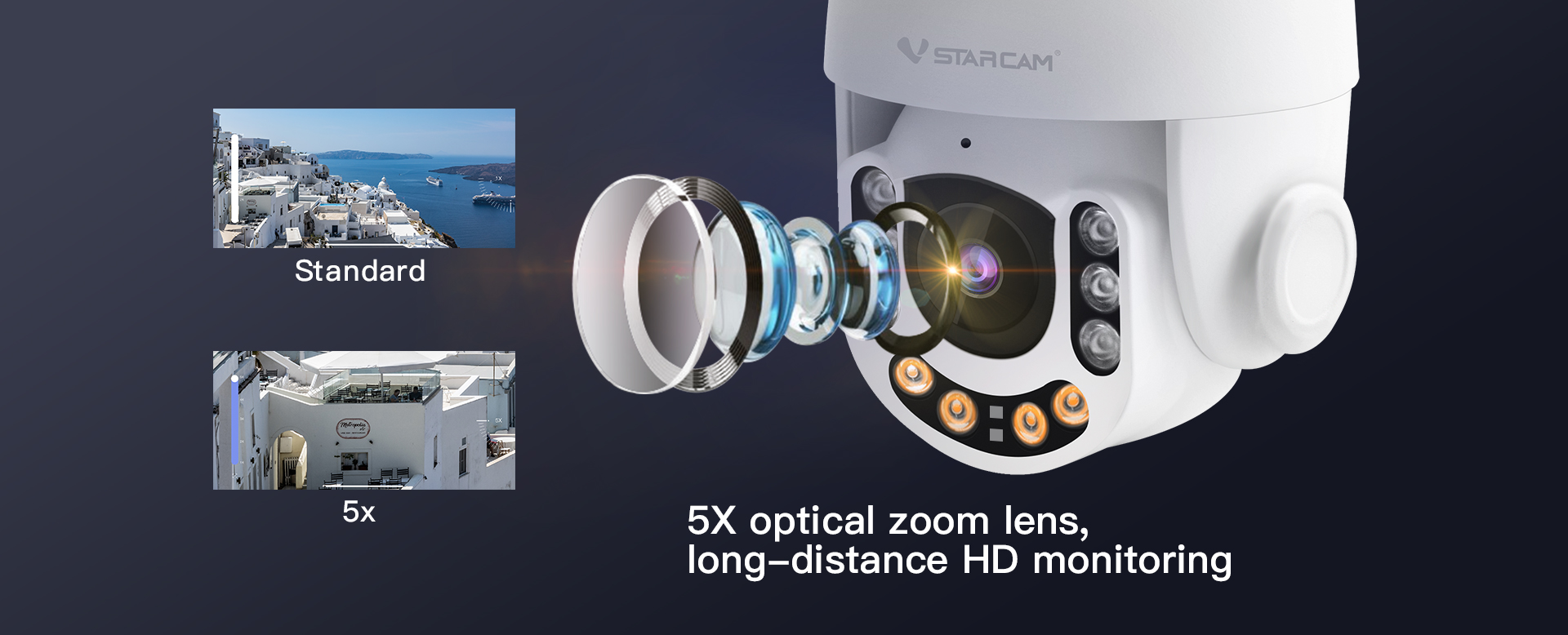

| Lens/View angle | 3.5-9.5mm zoom lens/ 99.3～40.5°(Diagonal) | |

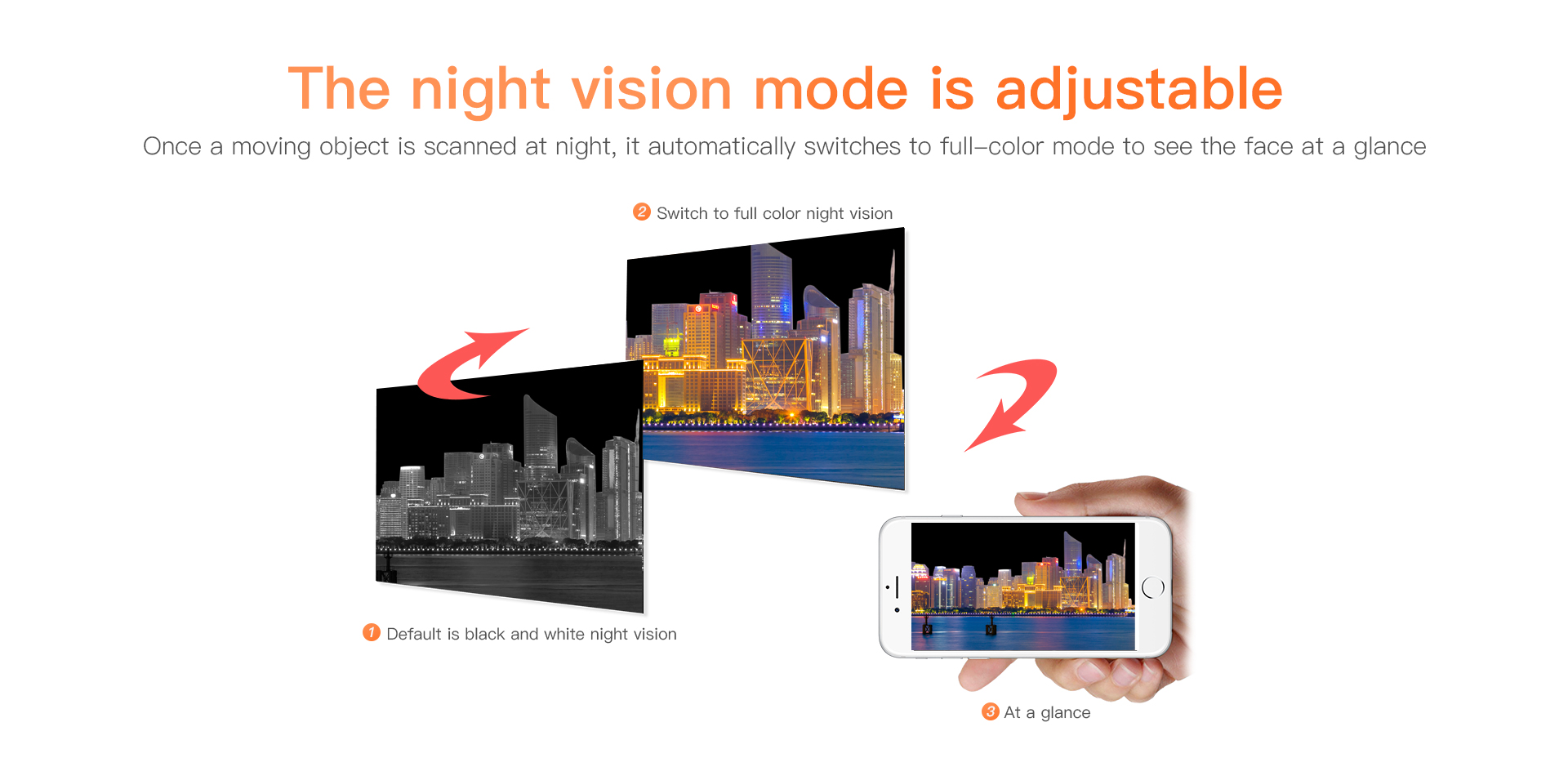

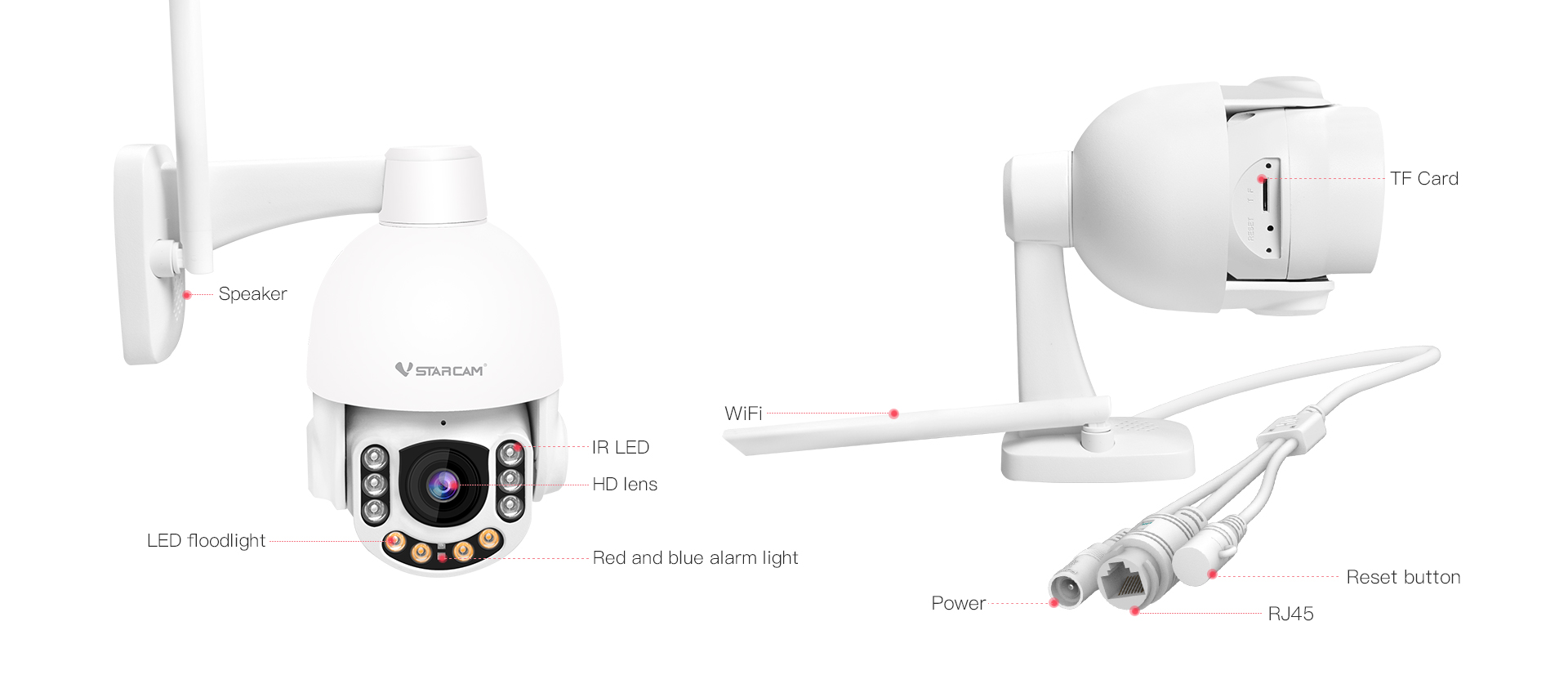

| Night vision | IR-CUT with automatic switching, 6 pcs 850nm IR LED lights(1 pcs blue alarm light and 1 pcs red alarm light ) ; 6 pcs high-power LED lights, Irradiation distance:15-20 m | |
| Video | Encode format | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
| Multiple streams | 2688*1520@15fps /640×360@15fps | |
| Bit Rate/Max Fps | 128～4096kbps/30pfs | |
| Image adjustment | Brightness and contrast can be adjusted | |
| Audio | Input | Built in -28±5dB microphone |
| Output | Built in 8Ω2W speaker | |
| Sampling frequency / width |
8KHz/16bit | |
| Compression standard | ADPCM/32kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |

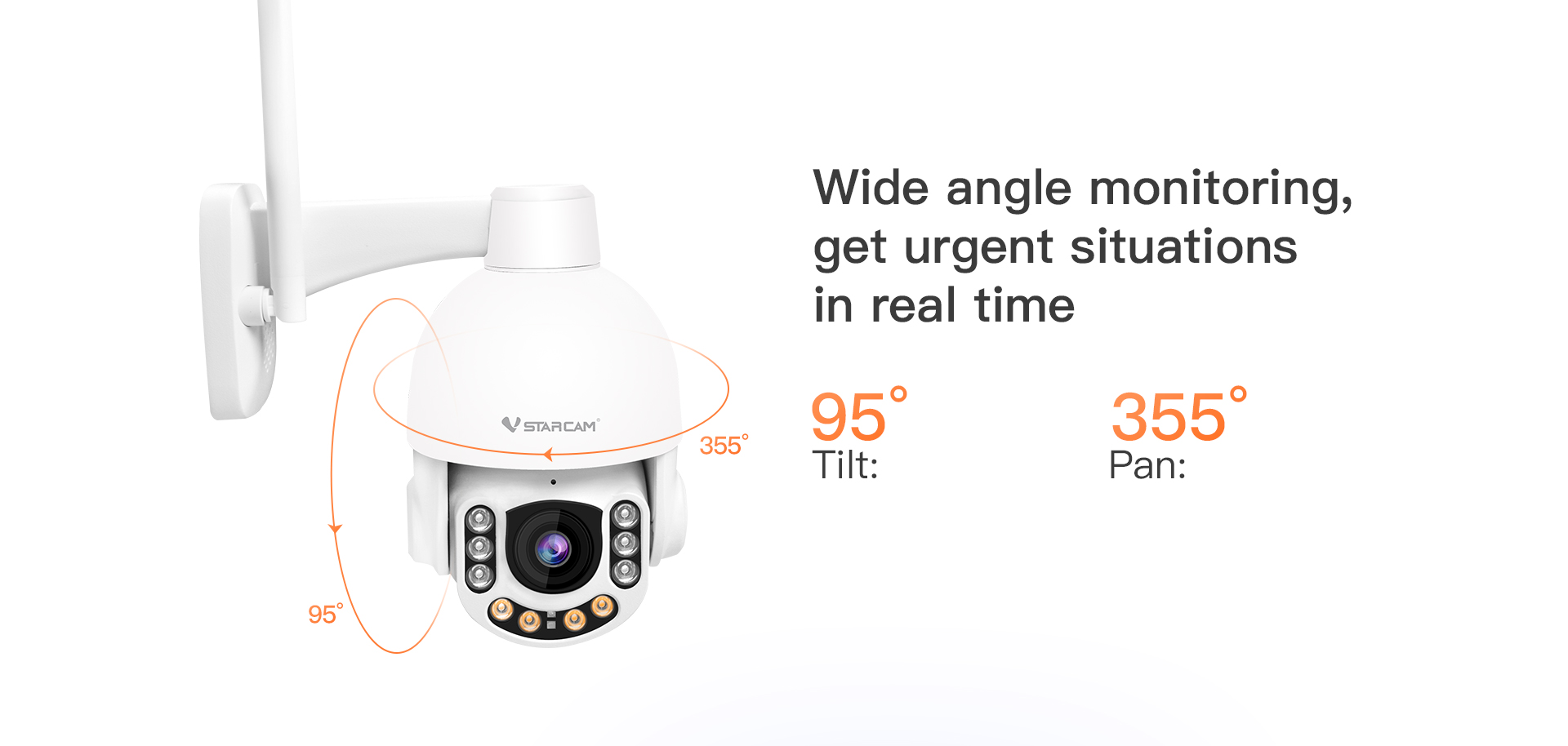

| Pan/Tilt | Pan-tilt | Pan：355°, Tilt：95° |
| Preset position | PC Client：support 16 positions, Mobile APP: support 5 positions | |
| Memory | Storage function | Support TF card, Maximum support 256GB; Cloud Storage; NVR；NAS |
| Alarm | Alarm detection | Support Motion detection, Humanoid detection, Humanoid tracking, Absence detection |
| Physical Environmental |
Rated voltage | DC12V 2A ±5% |
| Power consumption | Rated power: 4.08W (with IR LED light on)/ Max power: 13.8W | |
| Operating condition | Temperature:-10～50℃,Humidity:＜90% | |
| Weight | Net: 965g (Note: in kind prevail) | |
| Package size | 205x195x130mm(L*W*H) |
