| ✮4 MP Ultra HD |

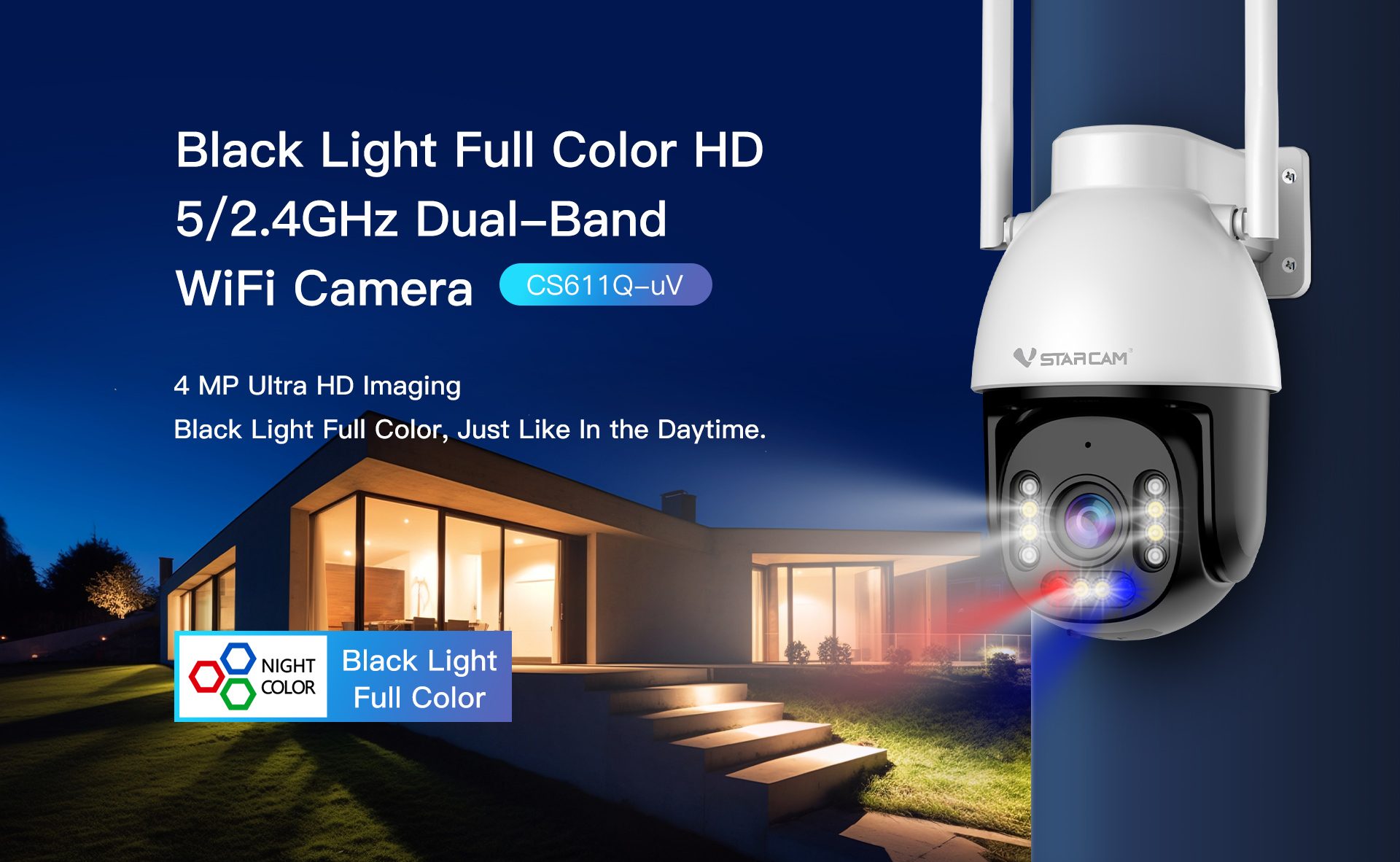

| ✮Black light full color, presenting color image even with no supplement light |
| ✮F1.0 large aperture, 4 times more light intake, clearer night vision |
| ✮Soft light design, presenting a full color image in 24 hours |
| ✮ISP image processing technology, preserving true colors |
| ✮Human detection, real time alerts |
| ✮Remote access, view the monitoring areas anytime and anywhere |
| Sorts |
Type |
Parameters |
| System |
Operating system |
Linux |
| Online visitor |
Supports 4 visitors at the same time |
| APP |
O-KAM |
| Collection |
CPU |
Sigmastar 337DE |
| Memory |
1Gbit |
| Lens |
4mm F1.0 |
| Image sensor |
1/2.9 CMOS sensor |
| Minimum illumination |
0.01Lux |
| Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |

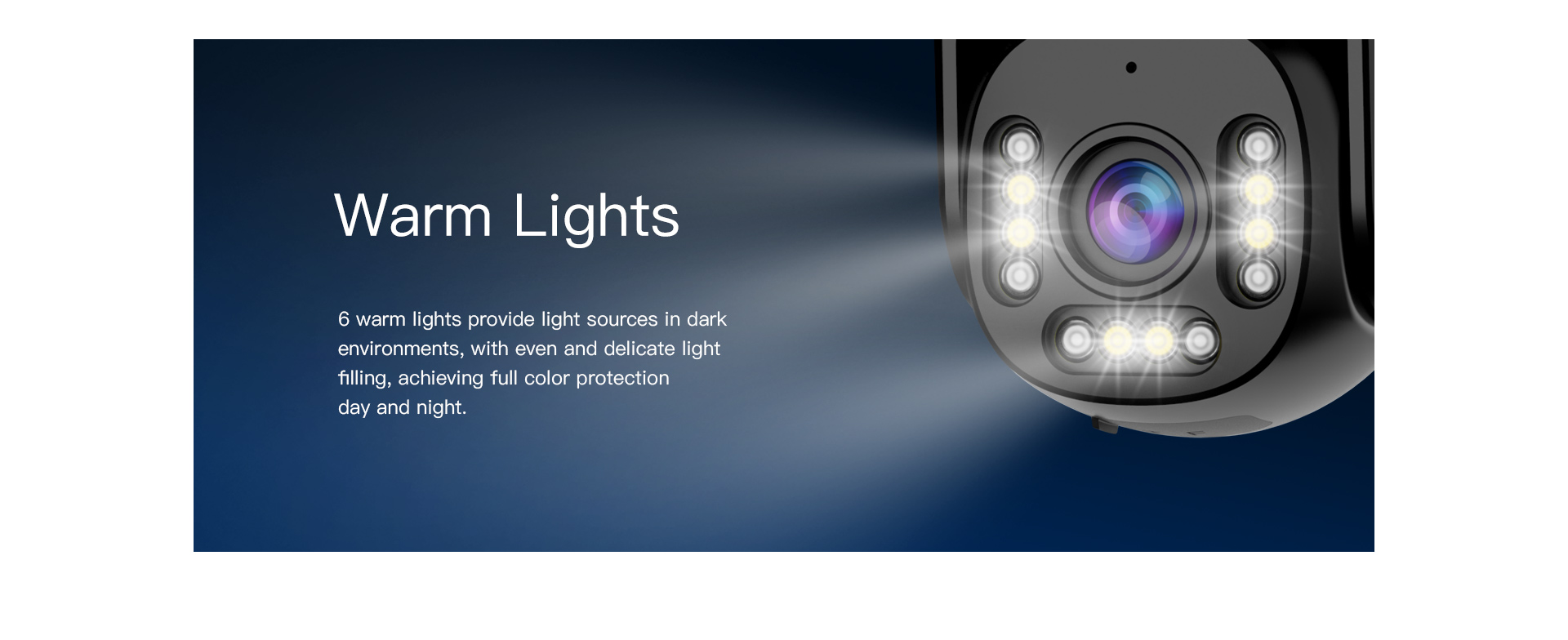

| Night Vision |
6 warm lights, full color night vision |
| Pan&tilt angle |
pan 310 °, tilt 90 ° |
| Viewing angle |
Diagonal：91° horizontal：77.3° vertical：42.9° |
| Video |
Resolution |

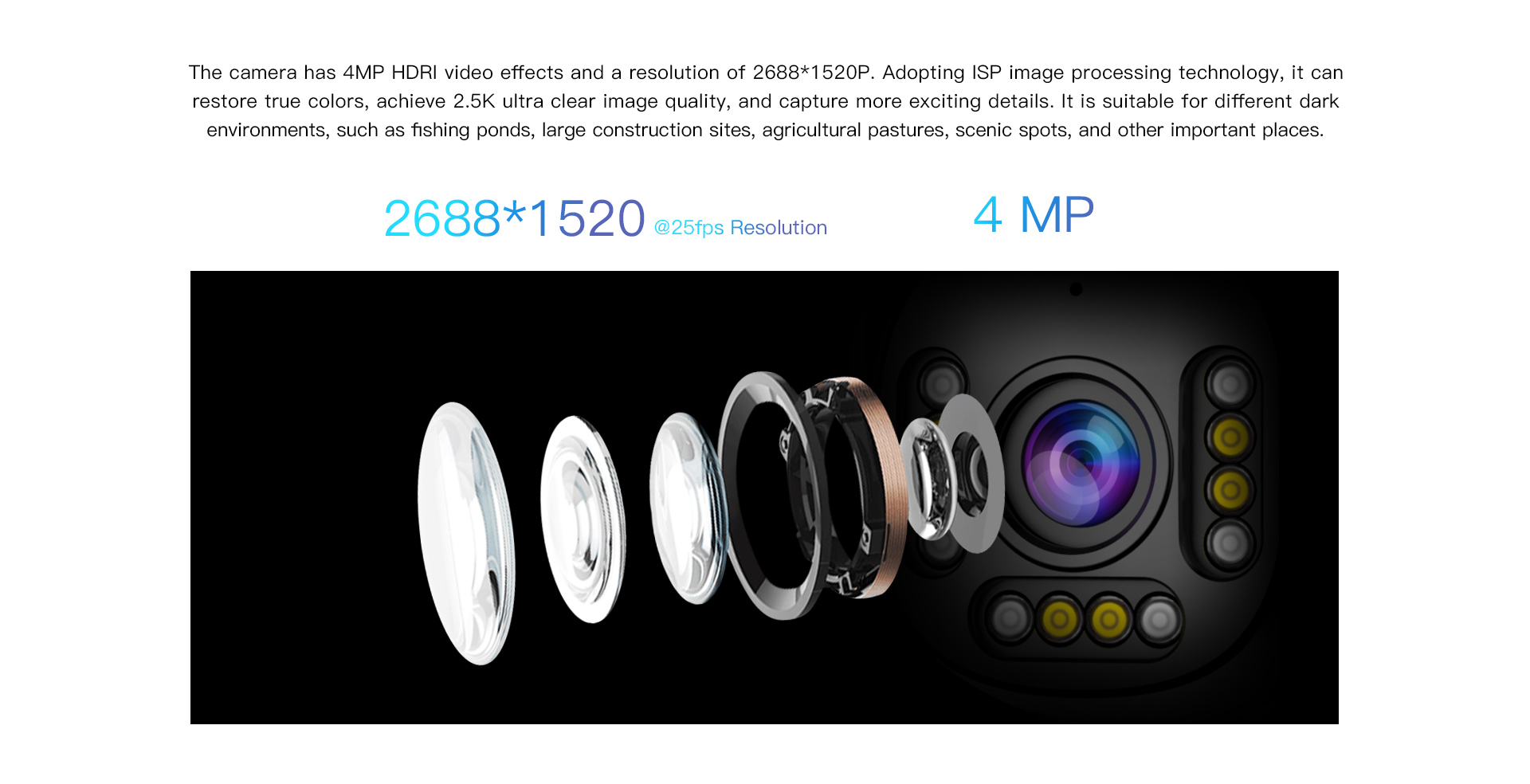

2688*1520P/25FPS/4 MP |
| Night Vision |
Full color night vision |
| Compression standard |
H.265 /H.264 /MJPEF/JPEG |
| IR control |
No IRCUT, full color night vision, automatically adjusting the brightness of the lights according to the environment |
| Bit rate |
128～4096kbps |
| Image adjustment |
Brightness, contrast, OSD display |
| Audio |
Input |
Built-in-38dB microphone |
| Output |
Built-in 8Ω2W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G711A |
| AI |
Humanoid detection |
Humanoid detection, filtering invalid video events |
| Object tracking |
Human tracking, automatically following after detecting a person |
| Area detection |
Free daub, only monitoring the areas concerned by users |
| Smart notification sound |
Different devices push different sounds, so that you can know exactly which device is triggered |
| Intelligent alarm sound |
Set different equipment alarm sounds according to different scenarios |
| Network |
Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. |

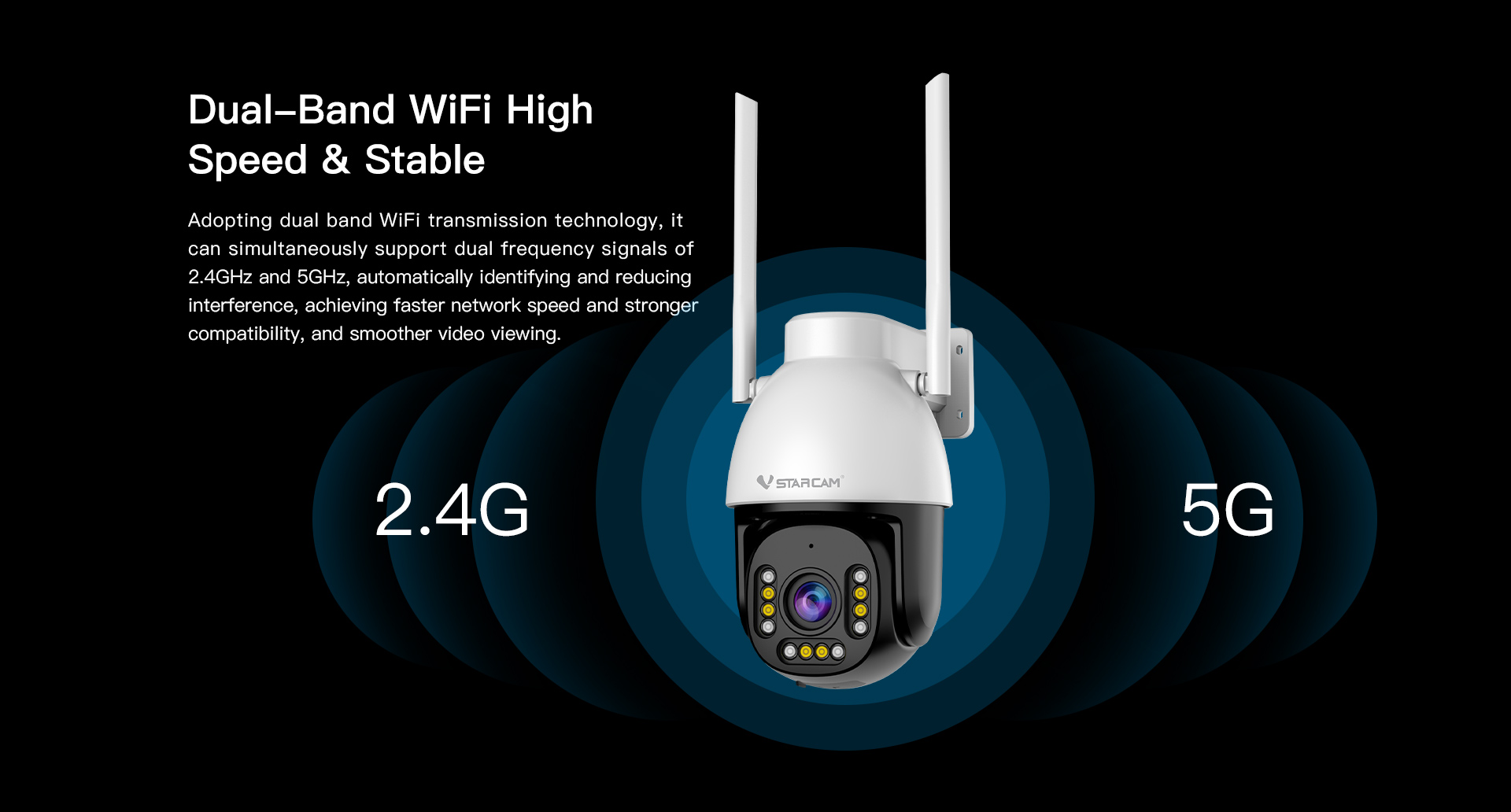

| Wireless network |
IEEE802.11b/g/n |
| Wireless frequency |
2.4GHz/5Ghz |
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
| Storage |
External TF card |
Support TF card (up to 256GB) |
| Cloud storage |
Support cloud storage |
| Alarm |
Alarm detection |
Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators |
Rated voltage |
DC12V±5% |
| Power consumption |
Power: 7.4W (warm light on), maximum power: 12.8W |
| Operating condition |
Temperature: -10～50℃; Humidity: ＜90% |
| Weight |
(Note: in kind prevail） |

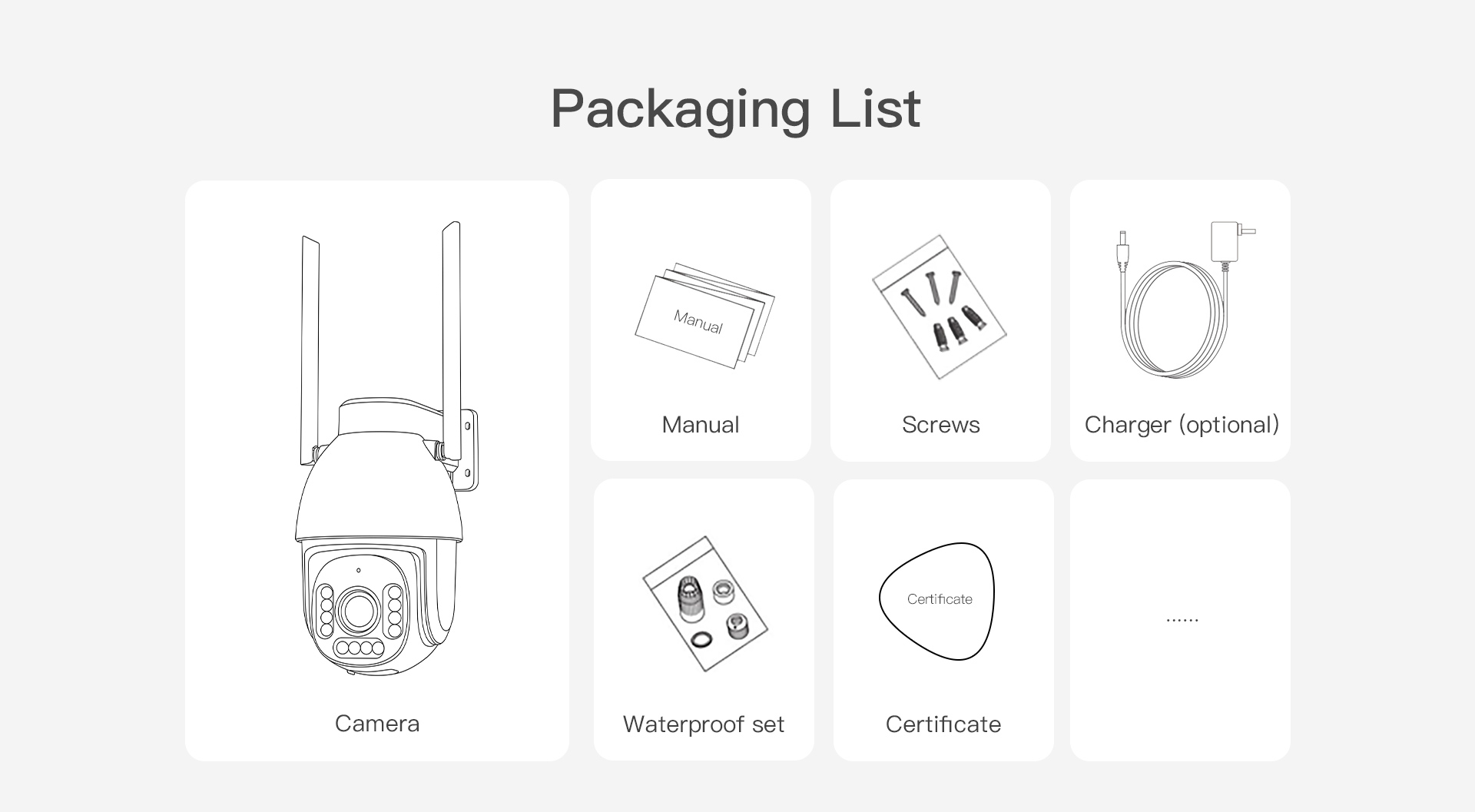

| Packing list |
Camera, screw pack, warning sticker, screwdriver, manual |
